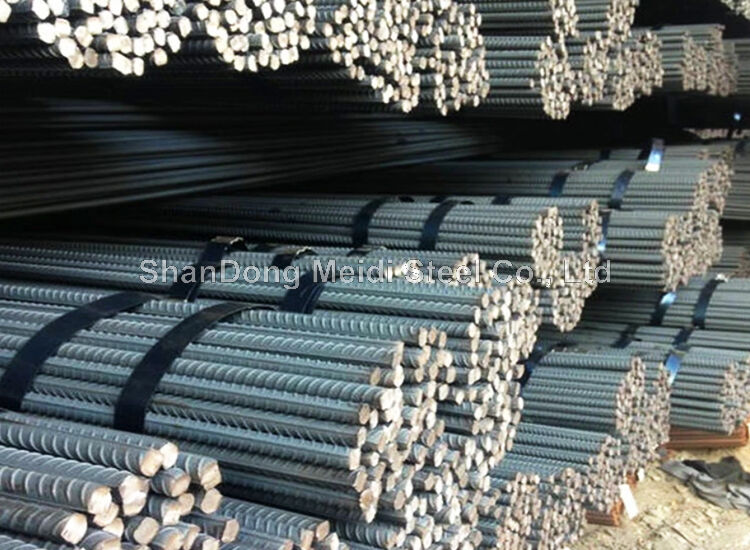

Rebar is a common name for hot-rolled ribbed steel bars. The grade of ordinary hot-rolled steel bar consists of HRB and the minimum yield point of the grade. H, R, and B are the initials of three words: Hotrolled, Ribbed, and Bars. Reinforcing bars are ribbed steel bars on the surface, also known as ribbed steel bars. Usually, there are two longitudinal bars and transverse bars evenly distributed along the length. The shapes of transverse ribs are spiral, herringbone and crescent. It is expressed in millimeters of nominal diameter. The nominal diameter of ribbed bars is equivalent to that of smooth round bars of equal cross-section. The nominal diameter of the steel bar is 8-50mm, and the recommended diameter is 8, 12, 16, 20, 25, 32, 40mm. Ribbed steel bars are mainly subjected to tensile stress in concrete. Ribbed steel bars have greater bonding ability with concrete due to the action of ribs, so they can better withstand external forces. Ribbed steel bars are widely used in various building structures, especially large, heavy, light thin-walled and high-rise building structures.

Rebar is a common name for hot-rolled ribbed steel bars. The grade of ordinary hot-rolled steel bar consists of HRB and the minimum yield point of the grade. H, R, and B are the initials of three words: Hotrolled, Ribbed, and Bars. Reinforcing bars are ribbed steel bars on the surface, also known as ribbed steel bars. Usually, there are two longitudinal bars and transverse bars evenly distributed along the length. The shapes of transverse ribs are spiral, herringbone and crescent. It is expressed in millimeters of nominal diameter. The nominal diameter of ribbed bars is equivalent to that of smooth round bars of equal cross-section. The nominal diameter of the steel bar is 8-50mm, and the recommended diameter is 8, 12, 16, 20, 25, 32, 40mm. Ribbed steel bars are mainly subjected to tensile stress in concrete. Ribbed steel bars have greater bonding ability with concrete due to the action of ribs, so they can better withstand external forces. Ribbed steel bars are widely used in various building structures, especially large, heavy, light thin-walled and high-rise building structures.

PRODUCT PARAMETER

Mechnical Properties of Steel Rebars
Standard	Grade	Nominal Diameter mm	Yield Strength MPa (min.)	Tensile Strength MPa (min.)	Tensile to Yield Ratio (min.)	Elongation in 200mm (min.)	Elongation (A5) (min.)	Agt % (min.)
SASO ASTM A615M	280(40)	12	280	420	N/A	12	N/A	N/A
	280(40)	14 - 18	280	420	N/A	12	N/A	N/A
	420(60)	12 - 20	420	620	N/A	9	N/A	N/A
	420(60)	25	420	620	N/A	8	N/A	N/A
	420(60)	32 - 40	420	620	N/A	7	N/A	N/A
	520(75)	12 - 25	520	690	N/A	7	N/A	N/A
	520(75)	32 - 40	520	690	N/A	6	N/A	N/A
SASO ASTM A706M	420(60)	12 - 20	420-540	550	1.25	14	N/A	N/A
	420(60)	25 - 36	420-540	550	1.25	12	N/A	N/A
	420(60)	40	420-540	550	1.25	10	N/A	N/A
BS 4449	460 B	12 - 40	460	N/A	1.08	N/A	14	5
BS 4449	B500B	12 - 32	500	N/A	1.08	N/A	N/A	5
GCC Standard GS06/IS0 6935-2	B400BR	12 - 40	400	N/A	1.08	N/A	14	5
	B400BWR	12 - 40	400	N/A	1.08	N/A	14	5
	B500BR	12 - 32	500	N/A	1.08	N/A	14	5
	B500BWR	12 - 32	500	N/A	1.08	N/A	14	5
Chemical composition of Steel Rebars
Standard	Grade	Chemical composition % (maximum)
		C	Si	Mn	S	P	N	Cu	C.E.V
SASO ASTM A615M	280/420/520 (40/60/75)	...	...	...	...	0.06	...	...	...
SASO ASTM A706M	420(60)	0.3	0.50	1.5	0.045	0.035	...	...	0.55
BS 4449	460 B	0.25	...	...	0.05	0.05	0.012	...	0.51
BS 4449	B500B	0.22	...	...	0.05	0.05	...	0.80	0.50
GCC Standard GS06/IS0 6935-2	B400BR / B500BR	...	...	...	0.06	0.06	...	...	...
	B400BWR / B500BWR	0.22	0.60	1.60	0.05	0.05	0.012	...	0.50

Linear Mass and Number of Bars In Bundles
Diameter (mm)	Nominal linear mass kg/m	Tolerance in linear mass (maximum)	Tolerance in linear mass (maximum)	Tolerance in linear mass (maximum)	Number of 12 mlong bars in a bundle of nominal weight of 2 tons.
		ASTM A615	BS 4449:2005	GCC Standard GS06/ISO 6935-2/2007
12	0.888	–6%	±4.5%	±6%	188
14	1.210	–6%	±4.5%	±5%	138
16	1.580	–6%	±4.5%	±5%	105
18	2.000	–6%	±4.5%	±5%	84
20	2.470	–6%	±4.5%	±5%	68
22	2.980	–6%	±4.5%	±4%	56
25	3.850	–6%	±4.5%	±4%	44
28	4.830	–6%	±4.5%	±4%	34
32	6.310	–6%	±4.5%	±4%	26
36	7.990	–6%	±4.5%	±4%	21
40	9.870	–6%	±4.5%	±4%	17
